Characteristics:
1. In the premise of ensuring no oil and was water leak and easy cleaning, our designed the hydraulic coaxial separation technology.
2. Double gas protection design, within kneading and pelletizing process, material's physical properties will change due to different temperature zones, the double gas protection design is adopted to achieve the purpose of protecting material's physical property.
3. Suitable for discolored special ceramic feeding like high-quality titanium / aluminum / copper / nickel and other metal alloy formula synthesis and granulation.
4. Wearable inner cavity was imported special new alloy steel and vacuum heat treatment are adopted. Strong wear resistance, resistance to horizontal erosion, corrosion resistance .
5. The speed ratio of rotors is adjustable, which target at some special material function requirements and achieve best dispersion effect and efficiency.

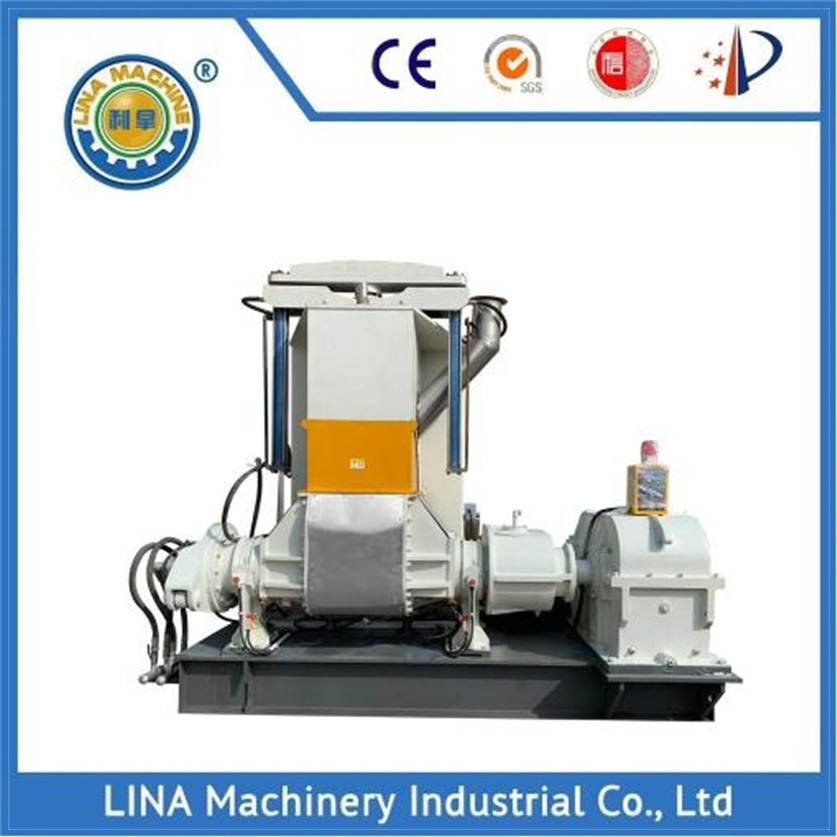

25 Liters Air Isolated Internal Mixer
The Air Isolated Internal Mixer is a specialized equipment used in industrial processes for mixing and compounding materials. It employs air isolation to prevent contamination and ensure purity of the
TAG: Internal Mixer
Description
This Air Isolated Internal Mixer new design directly with the materials can be mirror polished which ensures all the materials easy to be cleaned without stickiness and avoid formula lost and pollution. this Air Isolated Internal Mixer are suitable for a wide range of sensitive materials with different physical characteristics. For Toxic gas, expensive material and any other sensitive material. Surface of rotors and mixing chamber to avoid damage of important parts and ensure searing effect and the material is kneading and pelletizing in a very low oxygen or oxygen-free state. Characteristics:
1. In the premise of ensuring no oil and was water leak and easy cleaning, our designed the hydraulic coaxial separation technology.
2. Double gas protection design, within kneading and pelletizing process, material's physical properties will change due to different temperature zones, the double gas protection design is adopted to achieve the purpose of protecting material's physical property.
3. Suitable for discolored special ceramic feeding like high-quality titanium / aluminum / copper / nickel and other metal alloy formula synthesis and granulation.
4. Wearable inner cavity was imported special new alloy steel and vacuum heat treatment are adopted. Strong wear resistance, resistance to horizontal erosion, corrosion resistance .
5. The speed ratio of rotors is adjustable, which target at some special material function requirements and achieve best dispersion effect and efficiency.
|
Item |
Specification |
Remarks |
| Type |
Air Isolated Type |
|
|
Mixing Capacity |
25 liters |
|
|
Production Yield |
20-35 KG per time |
Subject to the proportion of material and dispersion requirements. |
|
Main Motor Power |
30/37 KW |
|
| Maximum Separation | / |
|
|
Temperature Control |
Heating or/and cooling |
Electric/oil/steam heating and circulating water cooling. |
|
Weight |
About 4200 KG |
|
|
Standard Dimensions |
About 2450*1600*2550 mm |
|
|
Eco Type Dimensions |
About 2550*1680*2680 mm |
|
